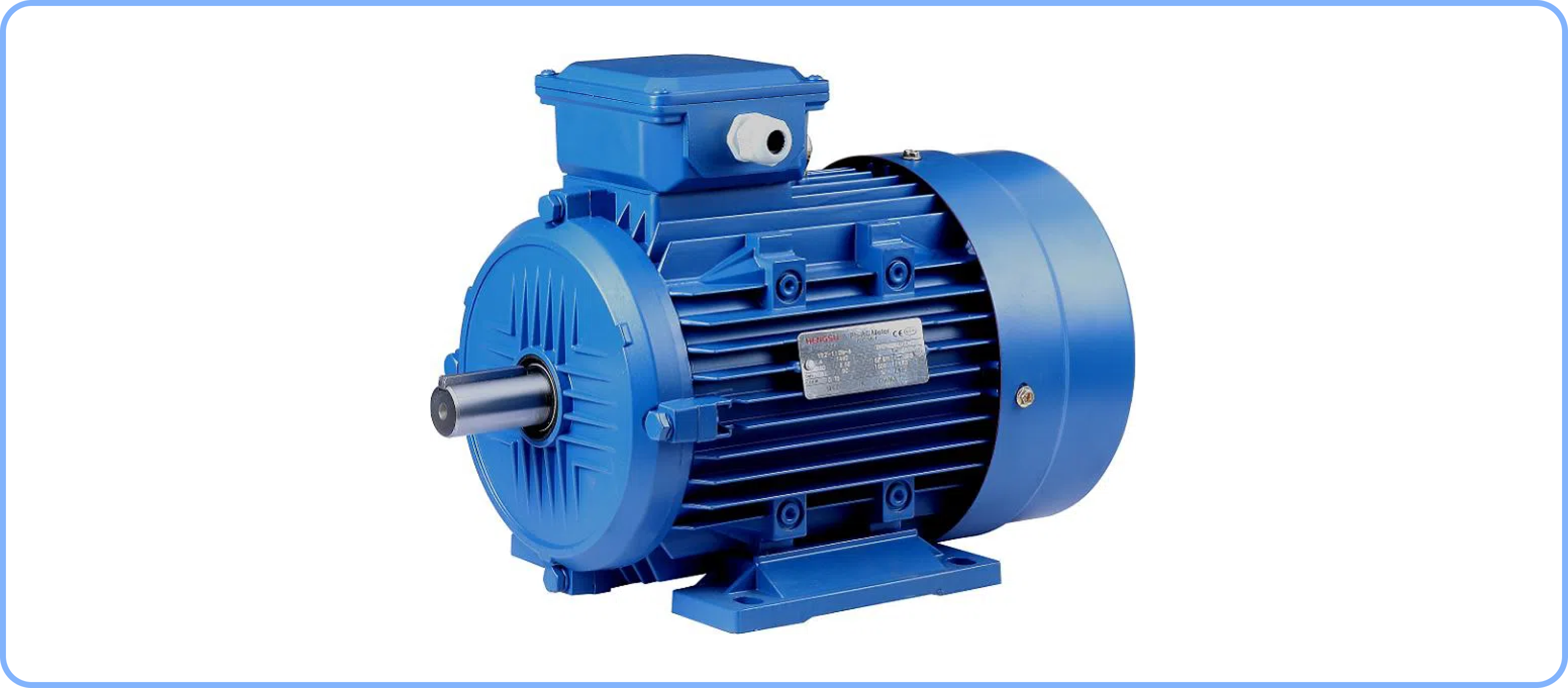

Premium Efficiency Motors, also known as high-efficiency motors, are electric motors designed to provide superior energy efficiency compared to standard motors. These motors are built to meet stringent efficiency standards and offer significant energy savings, reduced operating costs, and environmental benefits. Here’s a detailed overview of premium efficiency motors, including their features, benefits, applications, and standards:

Features And Benefits

• Frame size: H63-H355
• Rated power: 0.12kW-315kW
• Rated voltage: 200V~1140V
• Rated frequency: 50Hz
• Energy efficiency level: GB 18613-2020 level 2, IEC 60034-30-1:2014 IE4

Features and Make

• Full class H-insulation system rated at 180° IP66 rated (exceeds IP66 testing standards & methods)
• Full cast iron construction for durability & reliability
• Standard low noise plastic fan & conical fan cover
• Thru-flush pressure grease relief system from 11kW & above
• PTC thermistors throughout the entire range
• Fully wedged stators throughout the entire range
• VPI (vacuum pressure impregnation) throughout the entire range
• VSD (variable speed drive) compatible insulation system
• Lamination steel: Fully processed silicon steel used on all motors (400°C)
• Oversized terminal box to suit oversized and/or aluminium cables with bi-metal lugs
• Stainless steel, oversized glands for large cable connection
• Premium efficiency at 100%, 75% & 50% with power factors exceeding the norm

Premium efficiency motors offer substantial benefits in terms of energy savings, reduced operating costs, and environmental impact. They are designed to meet high-efficiency standards and are used in a wide range of applications across various industries. Investing in premium efficiency motors not only complies with regulatory requirements but also provides long-term economic and environmental advantages.
